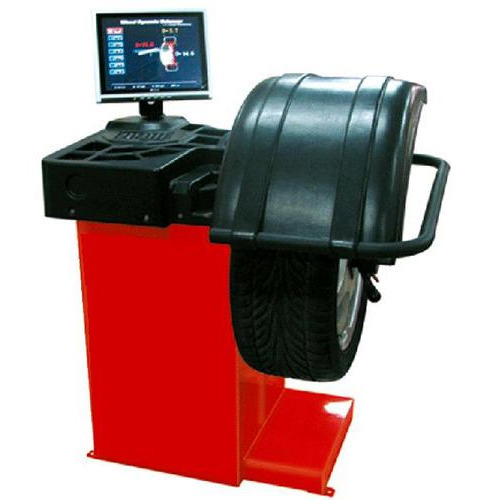

Wheel Balancer Videographic It is a precision force measuring electronic balancer with 14" color monitor diaplay designed to accurately balance wheels ststically & dynamically with a minimum cycle time. the machine gives simultaneous indication for both inner & outer rim on video display. The machine can balance the wheels weighing upto 65 kgs. All the various commands & displays are situated on front panel. With the A-60's push button operated calibration, it is possible to obtain sufficient regulation range, suitable also for less common kinds of wheels (motorcycle & competition cars). The sophisticated design of the machine makes operations such as per setting of the wheel dimensions, wheel mounting & machine opeartion very simple.
Features
- 14" high resolution color videographic dispaly with TV function
- Possibility of writing one's own name or a message on the initial screen
- Possibility of varying the tolerance function from 1 to 10 grams
- Possibilty of unbalance display in 1 gram to 5 grams
- Measurement for 2 planes as well as for 1 plane is possible
- Balancing Accuracy: 1 gms
- Data Entry: Keyboard
- Static optimization programme
- 4 alloy rim programme: ALU1, ALU2, ALU3, ALU4
- Self calibration
- Operational error code display
- Single phase low spin motor: 200 rpm
- Heavy duty shaft
- Automatic stop mecahnism after measurement cycle: Electronic DC injection braking
|
